Create a Multitenant Environment

This tutorial will guide you through the process of creating a multitenant environment. The multitenant environment allows you to share the same measures, insights, dashboards (so-called “analytical model”) among multiple consumers while keeping their data private (each consumer can access only their data).

For example, your company has multiple clients (tenants) who use your application. You want to build a business analytics experience where all your tenants will use the same measures, insights, and dashboards, but each tenant will see only their own data (the data that is relevant to and is associated with a specific tenant). You can also use a multitenant environment inside the company to present different data to different company departments while the analytical model is the same across the company.

A multitenant environment is implemented through a workspace hierarchy and data filters.

• A workspace hierarchy is a tree structure describing relations between parent workspaces and their child workspaces. A child workspace inherits entities from its parent workspace. Any change in the parent workspace is immediately propagated to the child workspace. At the same time, the child workspace can have its own entities in addition to those inherited from the parent workspace. For more information about the workspace hierarchy, see Build a Workspace Hierarchy.
• Data filters allow you to limit the data available in child workspaces. By setting a data filter, you can define what subset of the data from a parent workspace will be available in its child workspaces. For more information about the data filters, see Set Up Data Filters in Workspaces.

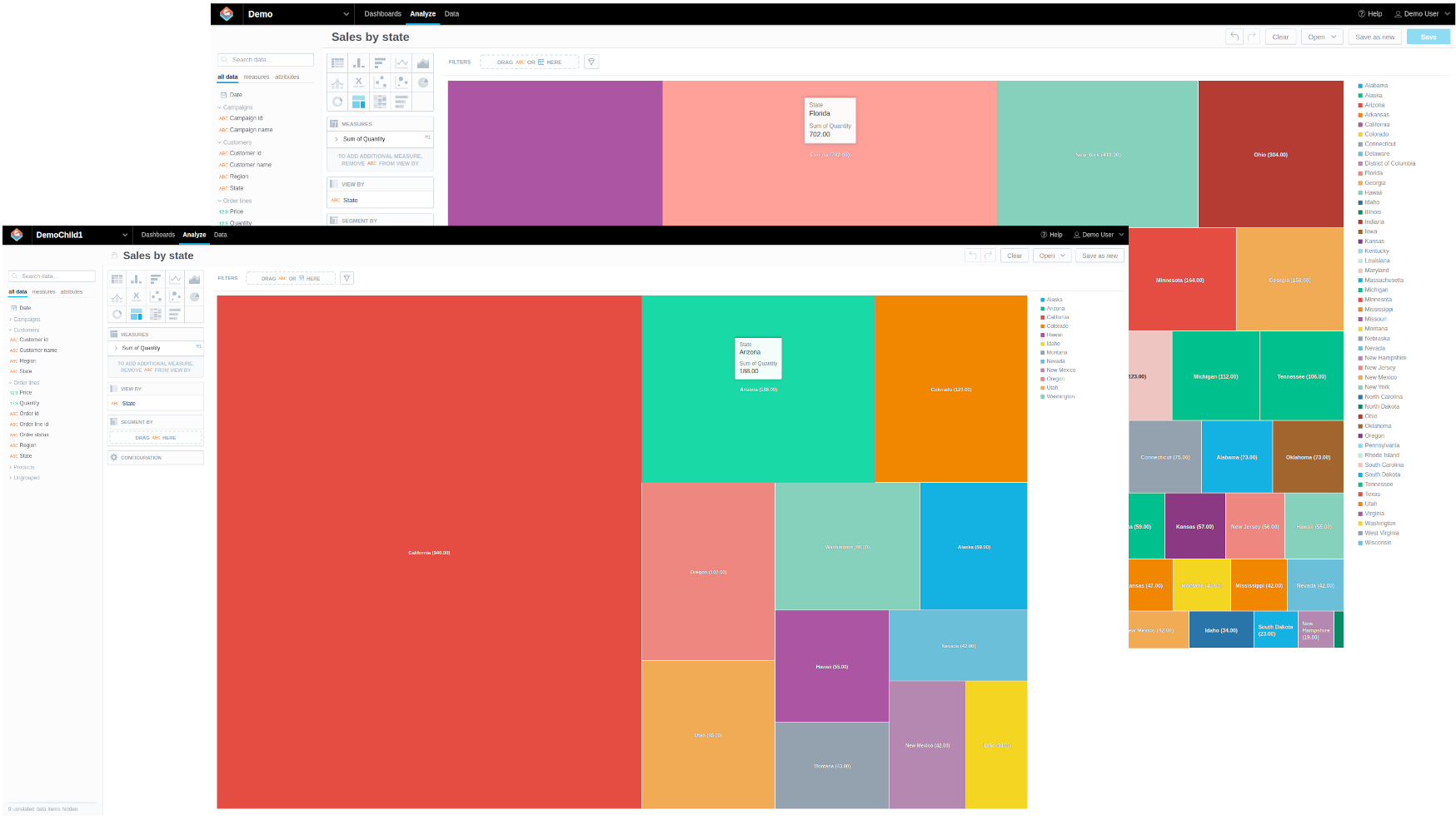

The following picture shows how an insight in a child workspace looks like comparing to the same insight in the parent workspace when the data filter that filters the data in the child workspace by region is applied:

To create a multitenant hierarchy, do the following:

1. Build a workspace hierarchy.
2. Set up data filters.

Build a Workspace Hierarchy

You are going to create a simple workspace hierarchy where the demo workspace is a parent workspace with two child workspaces.

graph LR
    demo --> DemoChild1
    demo --> DemoChild2

For more information about the workspace hierarchy, see Build a Workspace Hierarchy.

Steps:

1. Create a child workspace called DemoChild1 under the demo workspace.

   Bash

   PowerShell 7

   curl http://localhost:3000/api/entities/workspaces \
     -H "Content-Type: application/vnd.gooddata.api+json" \
     -H "Accept: application/vnd.gooddata.api+json" \
     -H "Authorization: Bearer YWRtaW46Ym9vdHN0cmFwOmFkbWluMTIz" \
     -X POST \
     -d '{
         "data": {
           "attributes": {
             "name": "DemoChild1"
           },
           "id": "demochild1",
           "type": "workspace",
           "relationships": {
             "parent": {
               "data": {
                 "id": "demo",
                 "type": "workspace"
               }
             }
           }
         }
         }' | jq .


   Invoke-RestMethod -Method Post -Uri 'http://localhost:3000/api/entities/workspaces' `
     -ContentType 'application/vnd.gooddata.api+json' `
     -H @{
       'Accept' = 'application/vnd.gooddata.api+json'
       'Authorization' = 'Bearer YWRtaW46Ym9vdHN0cmFwOmFkbWluMTIz'
     } `
     -Body '{
         "data": {
           "attributes": {
             "name": "DemoChild1"
           },
           "id": "demochild1",
           "type": "workspace",
           "relationships": {
             "parent": {
               "data": {
                 "id": "demo",
                 "type": "workspace"
               }
             }
           }
         }
         }' | ConvertTo-Json


   To confirm that the workspace has been created, the server returns the following response:

   {
     "data": {
       "id": "demochild1",
       "type": "workspace",
       "attributes": {
         "name": "DemoChild1"
       }
     },
     "links": {
       "self": "http://localhost:3000/api/entities/workspaces/demochild1"
     }
   }


2. Similarly, create a child workspace called DemoChild2 under the demo workspace.

3. Go to the home page and check that the two workspaces, DemoChild1 and DemoChild2, have appeared in the list of workspaces.



4. (Optional) Open the DemoChild1 workspace and check that it contains the dashboard and insight that you have created in the demo workspace.

How to Create Multiple Child Workspaces at Once

The procedure described earlier is helpful when you need to create just a few child workspaces, and you can create them one by one. If you need to create many workspaces (for example, dozens or hundreds), you can update the declarative layout describing all your workspaces.

Steps:

1. Download the complete declarative document, and save it to your machine (/tmp/ws-layout is used as an example location in the following code samples):

   Bash

   PowerShell 7

   curl http://localhost:3000/api/layout/workspaces \
     -H "Authorization: Bearer YWRtaW46Ym9vdHN0cmFwOmFkbWluMTIz" \
     | jq > /tmp/ws-layout.json


   Invoke-RestMethod -Uri 'http://localhost:3000/api/layout/workspaces' `
     -H @{ 'Authorization' = 'Bearer YWRtaW46Ym9vdHN0cmFwOmFkbWluMTIz' } `
     -OutFile $env:TEMP\ws-layout.json


   The downloaded document contains the definition of the demo workspace with all the objects that it holds, and the definitions of the DemoChild1 and DemoChild2 workspaces, which are empty.

2. Add the definition of another child workspace to the document. To do so, add the following JSON object to the top-level workspaces array:

       {
         "id": "demochild3",
         "model": {
           "analytics": {
             "analyticalDashboards": [],
             "filterContexts": [],
             "metrics": [],
             "visualizationObjects": []
           },
           "ldm": {
             "datasets": [],
             "dateInstances": []
           }
         },
         "name": "DemoChild3",
         "parent": {
           "id": "demo",
           "type": "workspace"
         }
       }


3. Add as many child workspaces as you need by adding more JSON objects with a different name and ID for each workspace.

4. Upload the updated declarative document back to the server.

   Bash

   PowerShell 7

   curl http://localhost:3000/api/layout/workspaces \
     -H "Authorization: Bearer YWRtaW46Ym9vdHN0cmFwOmFkbWluMTIz" \
     -H "Content-Type: application/json" \
     -X PUT -d @/tmp/ws-layout.json


   Invoke-RestMethod -Method Put -Uri 'http://localhost:3000/api/layout/workspaces' `
     -ContentType 'application/json' `
     -H @{ 'Authorization' = 'Bearer YWRtaW46Ym9vdHN0cmFwOmFkbWluMTIz' } `
     -InFile $env:TEMP\ws-layout.json


5. Go to the home page and check that the workspaces that you added have appeared in the list of workspaces.

Set Up Data Filters

You now have the workspace hierarchy where the child workspaces inherit the analytical model from the parent workspace, demo. They also share the same data source and the data stored in this data source.

You are going to set up a data filter to limit the data available in the child workspaces by region, which is determined by the values of the Region attribute. When the data filter is applied:

• The DemoChild1 workspace should be able to access only the data that is related to the Western region.
• The DemoChild2 workspace should not be able to access any region-related data.

For more information about the data filters, see Set Up Data Filters in Workspaces.

Steps:

1. Create a JSON document that describes the data filter. The column that should be used for filtering the data is region (it contains the values of the Region attribute).

   • To limit the data in the DemoChild1 workspace to the Western region, assign the West filter value to the workspace.

   • To restrict all the region-related data in the DemoChild2 workspace, do not assign any filter value to it. Because the definition of data filters is tied to the parent workspace, no data will be available in a child workspace if this workspace does not have a filter value explicitly assigned in the filter definition.

   {
     "workspaceDataFilters": [
       {
         "id": "region",
         "title": "Customer Region",
         "columnName": "region",
         "dataSourceId": "demo-ds",
         "workspace": {
           "id": "demo",
           "type": "workspace"
         },
         "workspaceDataFilterSettings": [
           {
             "id": "region_west",
             "title": "Region West",
             "filterValues": [
               "West"
             ],
             "workspace": {
               "id": "demochild1",
               "type": "workspace"
             }
           }
         ]
       }
     ]
   }


2. Upload the JSON document to the server.

   Bash

   PowerShell 7

   curl http://localhost:3000/api/layout/workspaceDataFilters \
     -H "Authorization: Bearer YWRtaW46Ym9vdHN0cmFwOmFkbWluMTIz" \
     -H "Content-Type:application/json" \
     -X PUT -d @/tmp/ws-filter.json


   Invoke-RestMethod -Method Put -Uri 'http://localhost:3000/api/layout/workspaceDataFilters' `
     -ContentType 'application/json' `
     -H @{ 'Authorization' = 'Bearer YWRtaW46Ym9vdHN0cmFwOmFkbWluMTIz' } `
     -InFile $env:TEMP\ws-filter.json


   The data filter is applied.

With this data filter in place, when opening or creating an insight where the Region attribute is used, you can expect the following:

• In the demo workspace, the insight shows data for all the regions.
• In the DemoChild1 workspace, the insight shows only the data related to the Western region.
• In the DemoChild2 workspace, the insight shows no region-related data (no values from the Region attribute are available).
